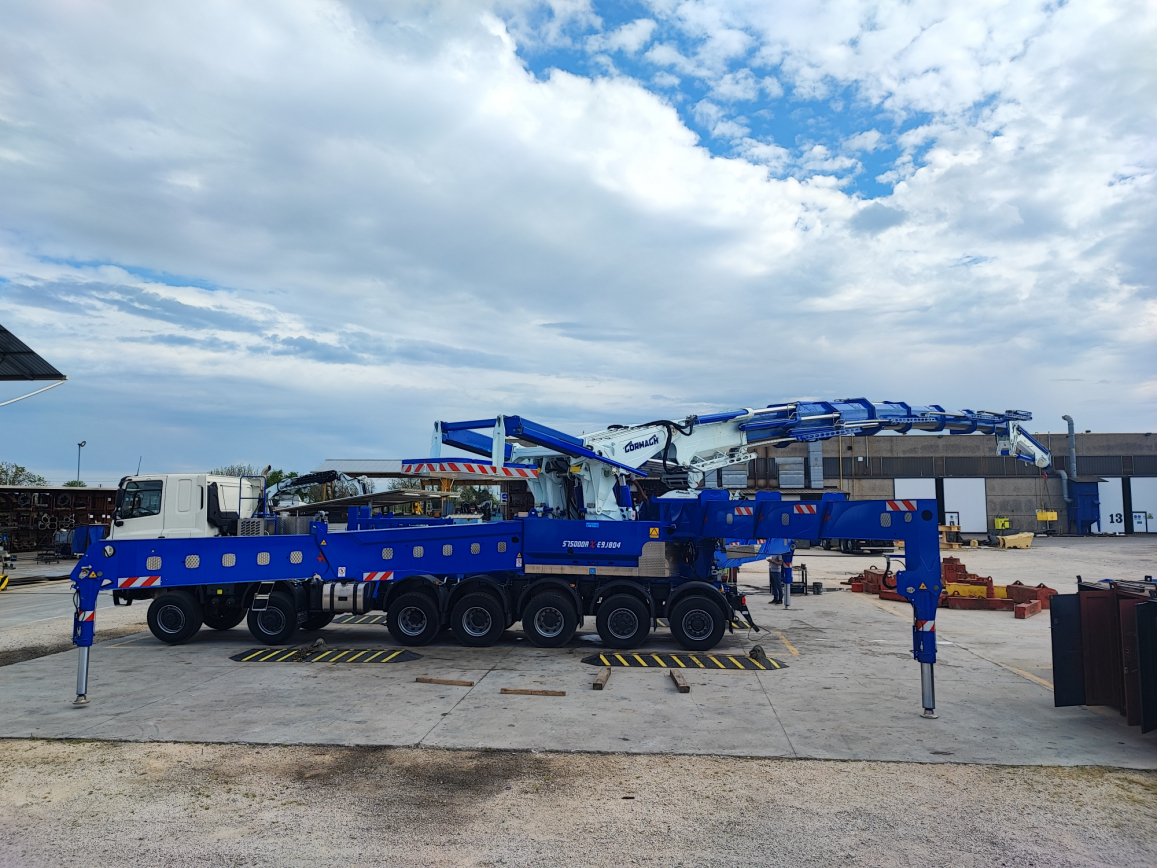

Crane Serie 575000AXO E -
Select the model:
Crane E4 - Capacity diagram
Crane E4 - Table of dimensions
Crane E4 - Information sheet
Technical characteristics |
Metric system |
Imperial system |
Static moment at tower pin |
515000 daN/m |
3725715 lbs/ft |
Hydraulic reach |
16140 mm |
52'11" |
Length |
10530 mm |
34'7" |
Width |
2548 mm |
8'4" |
Height |
2880 mm |
9'5" |
Weight (without oil and assembly) |
39590 kg |
87281 lbs |
Capacity |
69000 kg |
152120 lbs |
Reach with manual extensions |
|
|
Slewing torque |
33270 daN/m |
240688 lbs/ft |
Stabiliser protrusion |
3150 + 3150 mm | 5200 + 5200 mm |
10'4" + 10'4" | 17'1" + 17'1" |
Stabiliser width |
12340 mm |
40'6" |
Pump capacity |
120 + 110 l/min |
31 + 29 US gal/min |
Pressure |
330 bar |
4692 psi |
Tank capacity |
770 + 455 l |
203 + 120 US gal |
