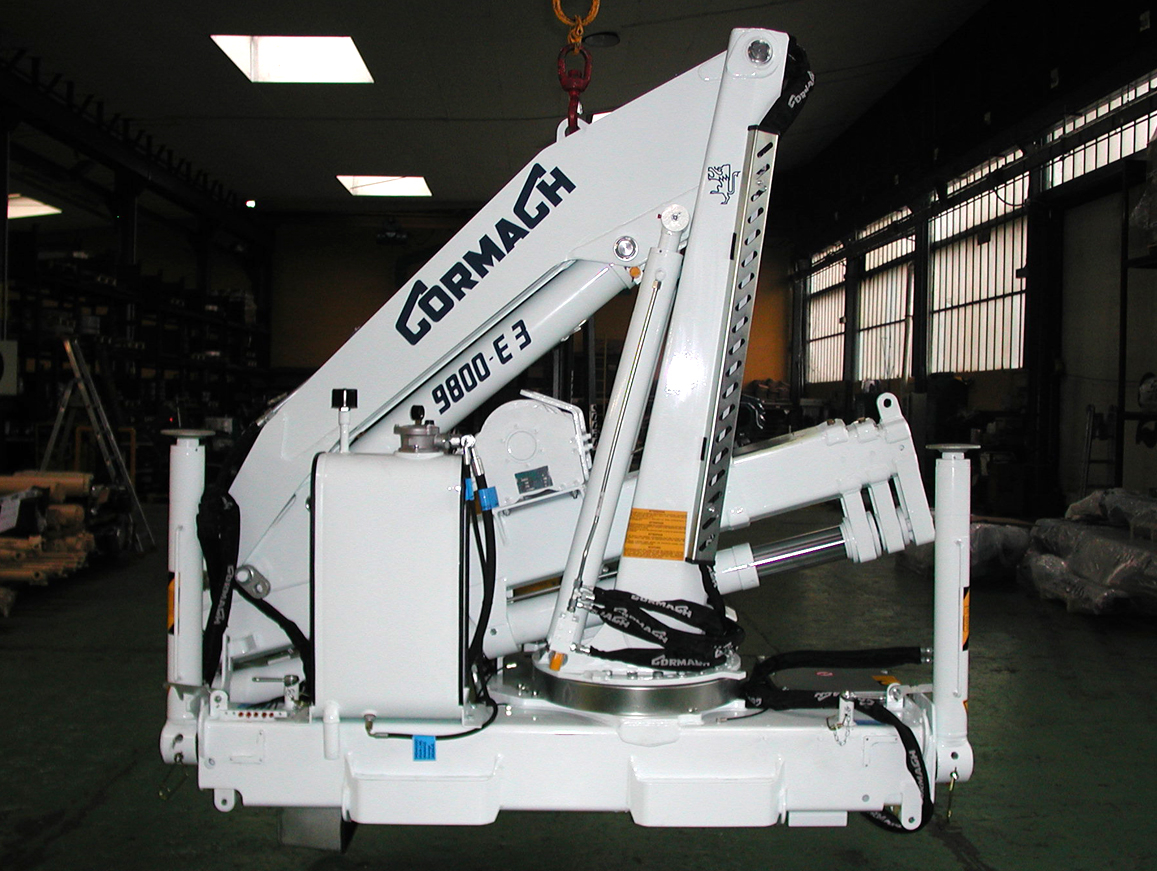

Crane Serie 9800 E -
Select the model:

Crane E2 - Capacity diagram
Crane E2 - Table of dimensions
Crane E2 - Information sheet
Technical characteristics Metric system Imperial system
Static moment at tower pin 10700 daN/m 77410 lbs/ft
Hydraulic reach 6300 mm 20'8"
Length 793 mm 2'7"
Width 2300 mm 7'7"
Height 2160 mm 7'1"
Weight (without oil and assembly) 1595 kg 3510 lbs
Capacity 4000 kg 8820 lbs
Reach with manual extensions 12700 mm 41'8"
Slewing torque 870 daN/m 6300 lbs/ft
Stabiliser protrusion 1400 + 1300 mm 4'7" + 4'3"
Stabiliser width 4850 mm 15'11"
Pump capacity 25 l/min 6,6 US gal/min
Pressure 275 bar 3910 psi
Tank capacity 57 l 15 US gal
Crane E2 - Supplied as standard
360° rotation
360° rotation
Rotating base crane stabilisers
Rotating base crane stabilisers
Supplementary control disabled (1)
Supplementary control disabled (1)
Two-sided controls
Two-sided controls
Moment limiter
Moment limiter
Crane E2 - Optional
420° rotation
420° rotation
Continuous rotation
Continuous rotation
Hydraulically extendible base crane stabilisers
Hydraulically extendible base crane stabilisers
Fixed auxiliary crossbeam
Fixed auxiliary crossbeam
Extendible auxiliary crossbeam
Extendible auxiliary crossbeam
Supplementary control enabled (1-2)
Supplementary control enabled (1-2)
Elevated operating position
Elevated operating position
Remote control
Remote control
Dual moment limiter
Dual moment limiter
Winch
Winch
Basket
Basket
Marine crane treatment
Marine crane treatment
Heat exchanger
Heat exchanger
Extended support plates
Extended support plates
