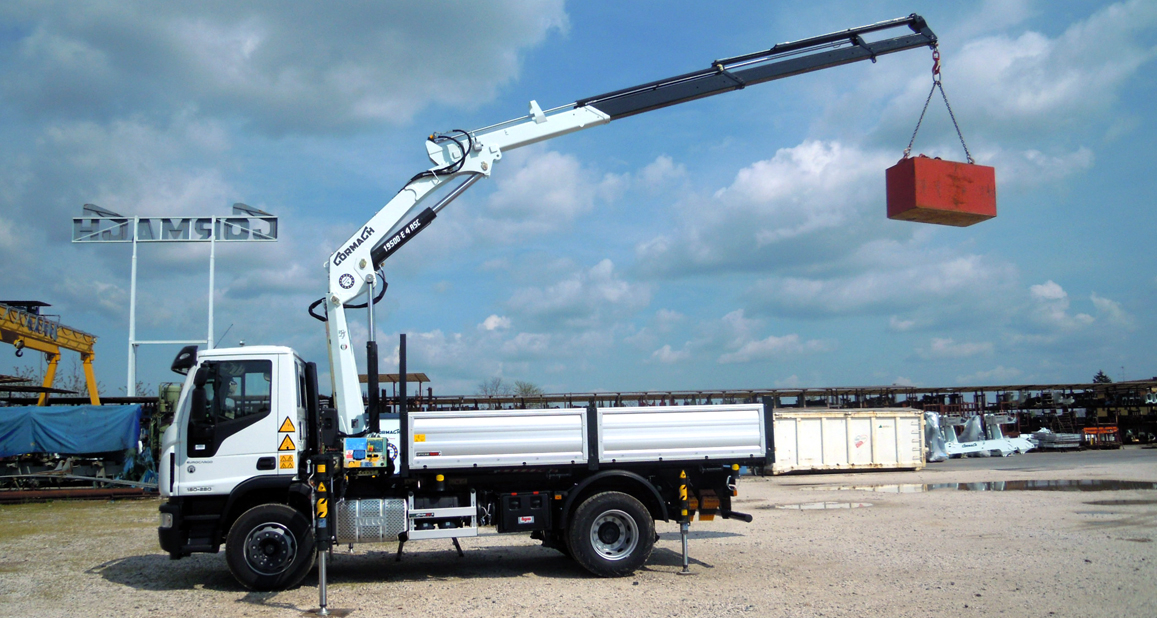

Serie 21500 TRF PLE

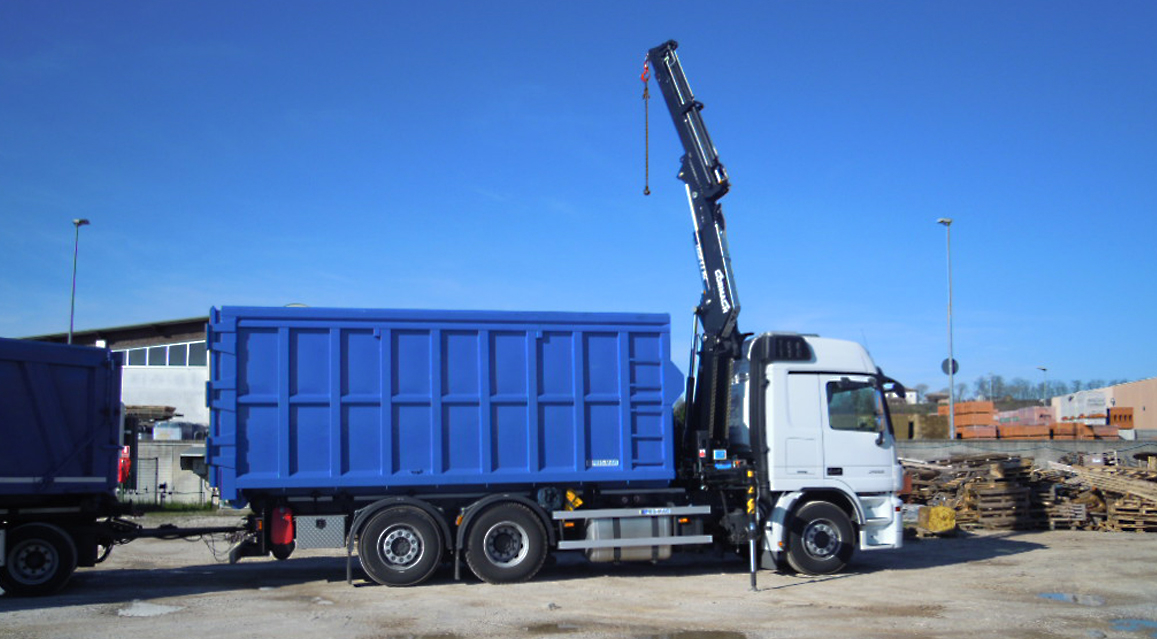

Serie 21500 TRF PLE

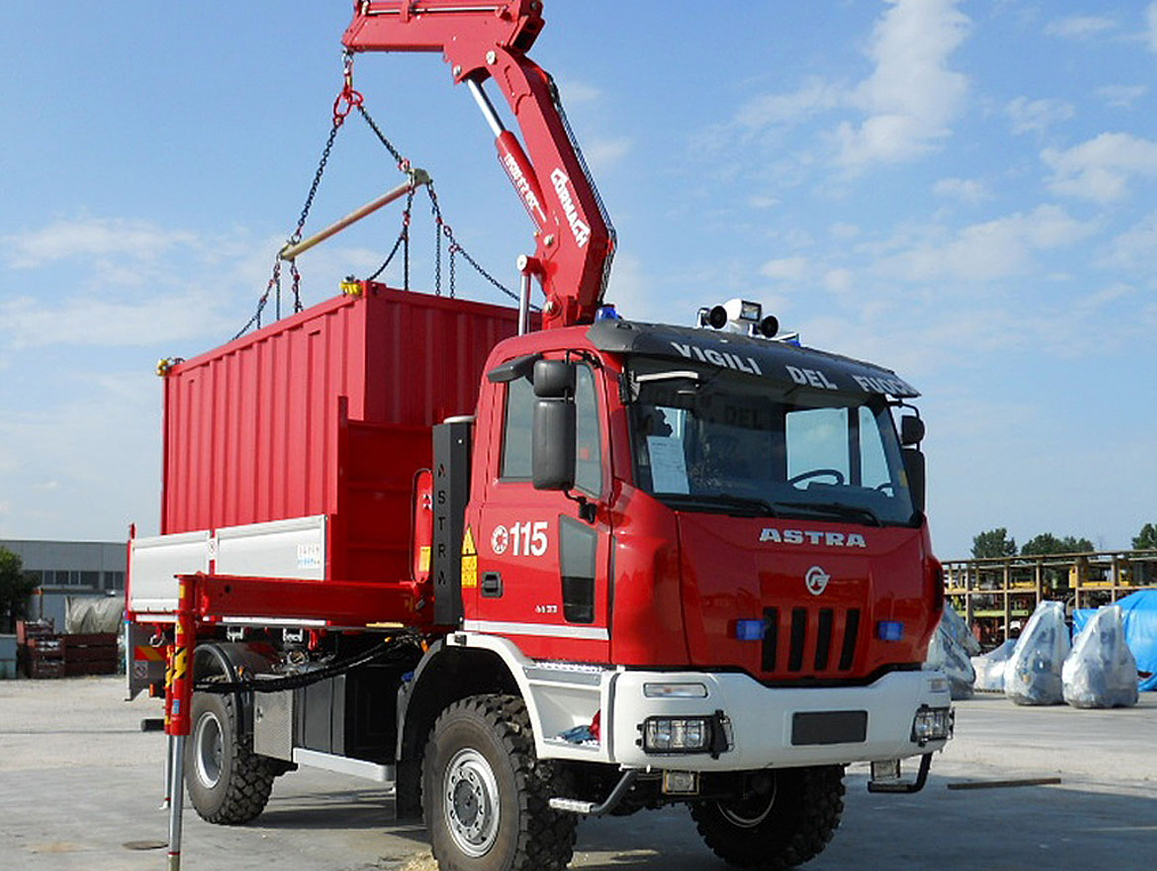

Serie 21500 TRF PLE

Crane Serie 19500 E ASC -
Select the model:

Crane E4 - Capacity diagram
E4 - Capacity diagram zoom
Crane E4 - Table of dimensions
Serie 19500 E ASC - Table of <strong>dimensions</strong> zoom
Crane E4 - Information sheet
Technical characteristics Metric system Imperial system
Static moment at tower pin 19500 daN/m 141044 lbs/ft
Hydraulic reach 12270 mm 40'3"
Length 790 + 60 mm 2'7" + 2"
Width 2478 mm 8'2"
Height 2310 mm 7'7"
Weight (without oil and assembly) 2320 kg 5115 lbs
Capacity 3600 kg 7937 lbs
Reach with manual extensions
Slewing torque 1750 daN/m 12660 lbs/ft
Stabiliser protrusion 1610 + 1350 mm 5'3" + 4'5"
Stabiliser width 5325 mm 17'6"
Pump capacity 50 l/min 13,21 US gal/min
Pressure 290 bar 4123 psi
Tank capacity 120 l 31 US gal
E4 - Brochure
Download the full brochure - PDF
Crane E4 - Supplied as standard
360° rotation
360° rotation
Hydraulically extendible base crane stabilisers
Hydraulically extendible base crane stabilisers
Supplementary control disabled (1)
Supplementary control disabled (1)
Remote control
Remote control
Automatic Speed Control
Automatic Speed Control
Moment limiter
Moment limiter
Crane E4 - Optional
420° rotation
420° rotation
Continuous rotation
Continuous rotation
Rotating base crane stabilisers
Rotating base crane stabilisers
Fixed auxiliary crossbeam
Fixed auxiliary crossbeam
Extendible auxiliary crossbeam
Extendible auxiliary crossbeam
Supplementary control enabled (1-2)
Supplementary control enabled (1-2)
Elevated operating position
Elevated operating position
Dual moment limiter
Dual moment limiter
Winch
Winch
Basket
Basket
Marine crane treatment
Marine crane treatment
Heat exchanger
Heat exchanger
Extended support plates
Extended support plates
